45mm Soft-Close Ball Bearing Slides TCH-22201 ZP Series

• TCH-22201 ZP Series

45mm Soft-Close Ball Bearing Slides

The Soft Close Ball Bearing Side Mount Drawer Slides combine smooth operation with gentle, controlled closure, offering convenience and reliability for standard-duty storage needs. With a loading capacity of 100 lbs (45 kg), these drawer slides are suitable for various residential and commercial applications. Crafted with precision and durability in mind, they ensure optimal support and functionality while enhancing user experience.

45mm Width Profile

Soft Close Mechanism

100 lb (45kg) Capacity

Standard-Duty Support

45mm soft-close ball bearing drawer slides TCH-22201 ZP with 100 lb capacity, smooth side mount operation, and durable steel construction.

Engineered for Smooth & Quiet Operation

Combining effortless glide with a gentle, controlled closure for an elevated user experience.

• Design & Technology

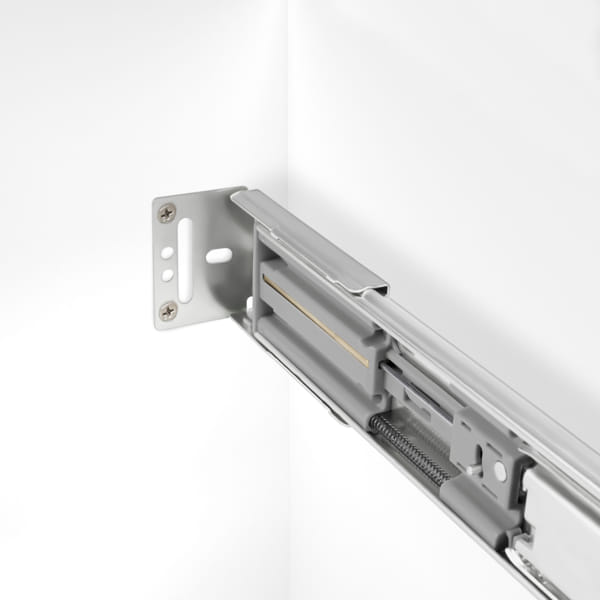

Soft-Close & Ball Bearing Mechanism

Engineered to maximize usability and safety, combining smooth operation with a gentle closure system that protects your cabinetry and contents.

Soft Close Mechanism: Equipped with a soft-close mechanism, these drawer slides ensure gentle and controlled closure, minimizing noise and preventing slamming. The soft-close feature enhances convenience and safety, making it ideal for everyday use.

Ball Bearing Mechanism: Featuring ball bearing mechanisms, these drawer slides provide smooth and quiet operation during both opening and closing actions. The ball bearings offer stability and support, even when the drawer is fully loaded.





45mm soft-close ball bearing drawer slides TCH-22201 ZP with 100 lb capacity, smooth side mount operation, and durable steel construction.

• Performance
Side Mount Installation & Seamless Glide

Designed for side mount installation, these drawer slides are easy to install and compatible with various cabinet configurations. The side mount design offers flexibility and versatility in drawer installation, accommodating different cabinet dimensions and requirements.

The ball-bearing mechanism ensures smooth and effortless drawer operation, allowing users to easily glide the drawers in and out without experiencing jams or disruptions. The soft-close feature adds an extra level of convenience and comfort.

• Specifications
Standard-Duty Capacity & Durable Construction

Built to withstand regular use and provide reliable daily performance in both residential and commercial settings.

Standard-Duty Load Capacity: With a loading capacity of 100 lbs (45 kg), these drawer slides are considered standard-duty, suitable for a wide range of household and commercial items from kitchen utensils to office supplies.

Durable Construction: Crafted from high-quality materials, these drawer slides are built to withstand regular use and provide long-lasting durability. The sturdy construction ensures stability and reliability, even in demanding environments.









45mm Soft-Close Ball Bearing Slides TCH-22201 ZP Series

Ideal Applications

The 45mm Soft-Close Ball Bearing Slides are suitable for a variety of residential and commercial applications.

Kitchen Cabinets

Kitchen cabinets and drawers.

Bathroom Vanities

Bathroom Vanities.

Office Furniture

Office furniture and filing cabinets.

Retail Displays

Retail displays and shelving units.

Technical Overview

Key application ranges and specifications at a glance.

100 lb / 45 kg

Load Capacity

45 mm

Slide Width

Soft-Close

Mechanism Type

Side Mount

Installation Type


Documentation and Downloads

Access the complete product catalog, flyer, and installation instructions.

  • Product Flyer

    Concise product overview and primary performance features.
