Push-Latch Cabinet Door Systems

• TCH-5120 Series

Push-Latch Cabinet Door Systems

Upgrade your cabinets with our durable nylon push-latches, designed for use with push-open hinges. Achieve a clean, modern, handle-free aesthetic while ensuring optimal opening performance by installing the unit exactly where the handle would normally be.

✓ For Push-Open Hinges

✓ Up to +10mm Adjustment

✓ Magnetic & Locking Tips

✓ Overlay & Inset Ready

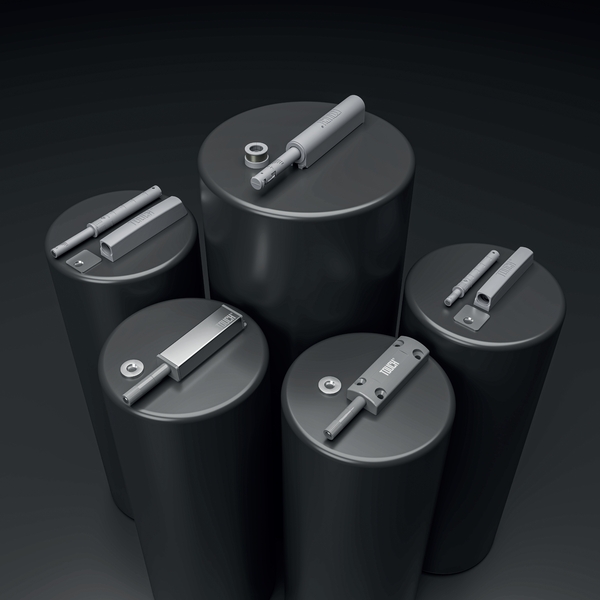

Push-to-open magnetic cabinet door latch with spring-loaded release for handle-free furniture and easy press-to-open operation.

Engineered for Perfection

A comprehensive system designed for handle-free cabinet doors, providing reliable magnetic or locking mechanisms for a seamless user experience.

• Design & Technology
Seamless Handle-Free Design

Designed for both standard and large doors, these push latches eliminate the need for traditional hardware, creating a clean exterior face for your cabinetry.

✓ Durable Construction: Features a durable nylon construction with a magnetic tip (or locking tip for specific models) to ensure secure closure.

✓ Optimal Placement: Optimal opening performance is achieved when the Push-latch unit is installed exactly in the position where the handle would normally be.





Push-to-open magnetic cabinet door lock-latch with spring-loaded release, ideal for handle-free cabinet doors and modern furniture.

• Installation
Versatile Installation Options

Flexible mounting to suit your specific manufacturing process and cabinet types, offering both concealed and surface-mounted configurations.

✓ Mounting Flexibility: Can be installed by boring into the panel or by using an adapter plate, depending on the model.

✓ Complete Sets: Sets typically include the push-latch unit, a self-adhesive catch plate, and a wood screw for comprehensive installation.

• Specifications
Comprehensive Range for All Doors

Engineered to cover various cabinet configurations, sizes, and applications with precision adjustment capabilities.

✓ Door Heights: Specific models are designed for standard door heights of 48″ and below, while others support large door heights of 48″ and above.

✓ Application Types: Suitable for both overlay and inset applications, providing flexibility across different cabinetry styles.

✓ Precision Adjustment: Models feature a wide adjustment range, varying from +4 mm to -1 mm, and up to +10 mm to -1 mm for precise gap alignment.







Push-to-open magnetic cabinet door latch TCH-512024 with spring-loaded mechanism for handle-free cabinet access and magnetic catch closure.
Push-Latch Cabinet Door Systems TCH-5120 Series

Ideal Applications

Push-Latch Cabinet Door Systems are perfectly suited for modern handle-free furniture across various environments.

Kitchen Cabinets

Modern handle-free kitchen cabinets and tall pantries.

Bathroom Vanities

Sleek bathroom vanities with push-open functionality.

Office Furniture

Executive office storage and handle-less credenzas.

Wardrobes

Large bedroom wardrobes exceeding 48" in height.

Technical Overview

Key specifications for the Push Latch series at a glance.

Up to 48"+

Door Height Capacity

Nylon

Material Construction

Push-Open

Compatible Hinges

+10 to -1mm

Max Adjustment

Documentation and Downloads

Access the complete TCH-5120 series technical specifications and installation guides.
