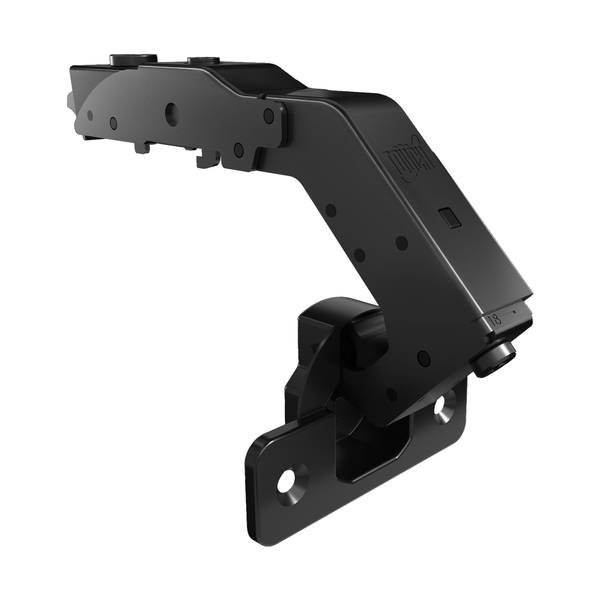

• TCH-11400 135°
BI-FOLD DOUBLE DOORS HINGE

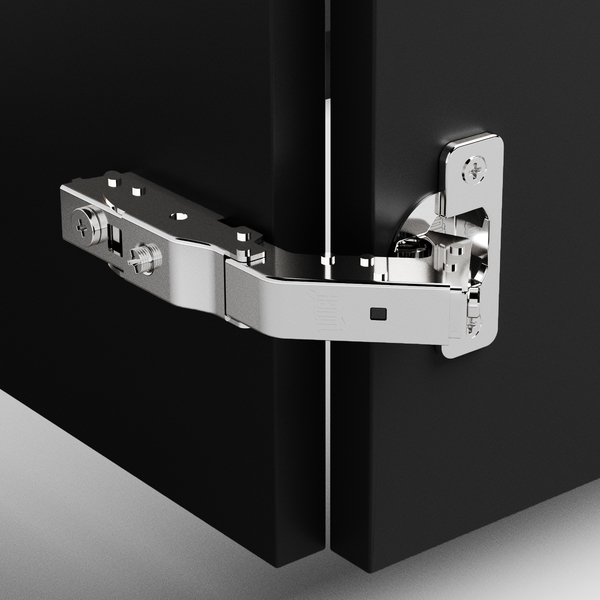

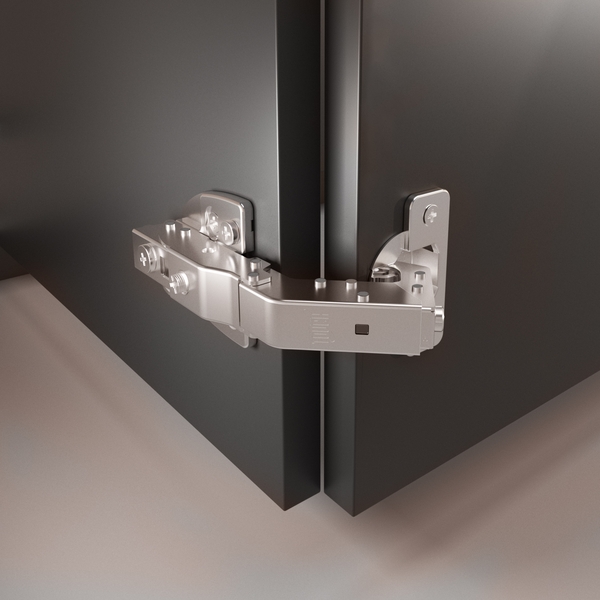

The TOUCH TCH-11400 Series Bi-Fold Double Door Hinge is expertly engineered for specialized corner cabinet solutions. Designed specifically for use with a 165° hinge on the adjacent door[cite: 3], it provides seamless accessibility and is available in premium Classic Nickel and Modern GM (Gun Metal) finishes.
✓ 135° Open Angle
✓ Gap Stability Control
✓ Bi-Fold Application
Engineered Features
Advanced corner functionality combined with micro-adjustment capabilities for flawless double-door performance.
• Motion Control
Specialized Bi-Fold Adjustment
Engineered for double door corner cabinets, delivering exceptional control over the alignment and ensuring precise gap stability[cite: 3] throughout the life of the cabinet.
✓ The bi-fold hinge adjustment screw allows for up to +30 mm of adjustment.
✓ Designed for use with a 165° hinge on the adjacent door.
✓ Provides a standard 135° open angle.
• Compatibility
Enhanced Door Thickness Support
Built to handle heavier, modern door constructions while maintaining a standard cup profile, making it highly versatile for various project requirements.
✓ Accommodates extended door thicknesses from 16mm to 26mm.
✓ Standard 35mm hinge cup diameter with an 11.5mm cup height.
✓ Flexible boring distance range from 3mm to 7mm.
• Installation & Finishes
Versatile Mounting & Premium Finishes
Designed to adapt smoothly to your manufacturing needs, offering standard mounting configurations and two beautiful finish options to match any aesthetic.
✓ Fully compatible with existing mounting plates.
✓ Available in both Screw-on and Press-in mounting types.
✓ Suitable for both Face-frame and Frameless cabinets.
✓ Available in Classic Nickel and Modern GM (Gun Metal).
Technical Overview
Key specifications and performance standards of the 135° Bi-Fold hinge at a glance.
135°
Open Angle
100,000
Tested Cycles
Grade 10
Corrosion Resistance
Nickel / GM
Available Finishes
Documentation and Downloads
Access the complete product catalog, flyer, and installation instructions.
-
Full Product Catalog
Complete Hinge System range and technical specifications.
-
RESTRICTOR
HOW TO USE THE OPENING ANGLE RESTRICTOR
-
Installation Instructions
Detailed installation, adjustment, and setup guidance.
