• TCH-23302.S Series

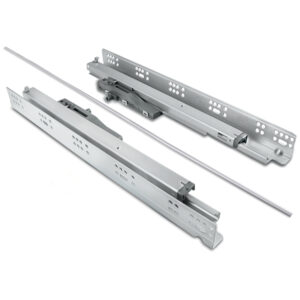

Clip-On Push-Open Synchronized Undermount
Concealed drawer runners with a synchronized push-open mechanism perfectly suited for modern cabinetry. Facilitates effortless opening of drawers via the push latch mechanism with a gentle touch on the drawer front. Durable runners ensure consistently smooth and controlled drawer glide.
✓ Push-Open Mechanism
✓ Fits 16mm & 19mm Thickness
✓ Motion Sync Stabilizer
✓ 75lb (34kg) Capacity
Engineered for Perfection
Crafted with precision engineering and advanced features, designed to be concealed beneath the drawer for a seamless and elegant solution.
• Design & Installation
Streamlined Concealed Design
Concealed drawer runners featuring a push-open mechanism. The streamlined concealed design allows for effortless installation across varying configurations.
✓ Cabinet Suitability: Suited for both frameless and face frame cabinets.
✓ Available Lengths: Offered in lengths spanning from 305mm (12″) to 533mm (21″).
✓ Recommended Widths: Recommended for drawer widths ranging from 610mm (24″) to 1220mm (48″).
• Performance & Adjustability
Effortless Push-Open Functionality
Facilitates effortless opening of drawers via the push latch mechanism with a gentle touch on the drawer front.
✓ Synchronized Motion: Features a motion synchronization stabilizer for optimized movement.
✓ Dimensional Adjustment: Equipped with a six-way dimensional adjustment clip device.
✓ Depth Adjustment: Features elongated holes for precise depth adjustment.
• Specifications
Versatile Material Compatibility
Engineered for maximum versatility, these durable runners accommodate robust load requirements and provide consistent smoothness.
✓ Material Fit: Compatible with material thicknesses of 16mm (5/8″) and 19mm (3/4″).
✓ Load Capacity: 34kg (75lb) Load capacity.
Ideal Applications

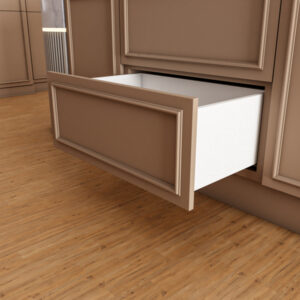

Clip-On Push-Open Synchronized Undermount Slides are suitable for a wide range of handle-less residential and commercial applications.
Kitchen Cabinets
Kitchen cabinets and drawers.
Bathroom Vanities
Bathroom Vanities.
Office Furniture
Office furniture and filing cabinets.
Bedroom Dressers
Bedroom dressers and nightstands.
Retail Displays
Retail displays and showcases.
Technical Overview
Key application ranges and specifications at a glance.
75 lb / 34 kg
Load Capacity
16 & 19 mm
Panel Thickness
6-Way
Adjustment Clip
Push-Open
Opening Mechanism
Documentation and Downloads
Access the complete product catalog, flyer, and installation instructions.
-
Full Product Catalog
Download Full Technical Specs Catalog (PDF)
-
Product Flyer
Concise product overview and primary performance features.
-
Installation Instructions
Detailed installation, adjustment, and setup guidance.
