• TCH-23101 Series
T-MOTION Soft-Close Undermount Slides
Representing the pinnacle of modern drawer slide innovation, offering enhanced stability, synchronized movement, and whisper-quiet closure for an exceptional drawer experience. Crafted with precision engineering for a seamless and elegant solution.
✓ T-MOTION Technology
✓ Fully Concealed
✓ Built-in Soft-Close
✓ 75 lb (34kg) Capacity
Engineered for Perfection
A clear presentation of the innovation, design compatibility, and precision performance of our T-MOTION drawer slides across both 16mm and 19mm models.
• Advanced Motion
Synchronized T-MOTION & Whisper-Quiet Closure
Incorporating T-MOTION technology, these drawer slides provide enhanced stability and synchronized movement of the runner parts, creating a peaceful and comfortable environment.
✓ T-MOTION Technology ensures consistent and smooth operation, reducing side-to-side movement.
✓ Soft-Close Mechanism ensures gentle and controlled closure, minimizing noise and preventing slamming.
✓ Precision engineering delivers reliable performance and durability, even with heavy loads.
• Clean Aesthetics

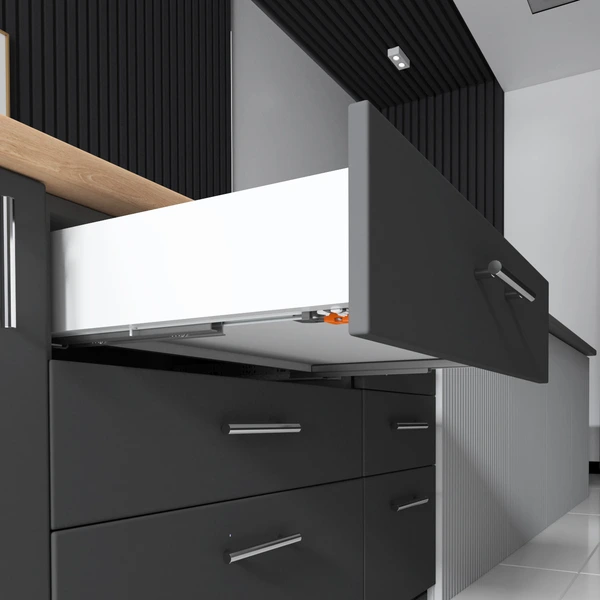

Undermount Concealed Design
Designed to be concealed beneath the drawer, these slides offer a clean and seamless appearance, with no visible hardware disrupting the aesthetics of the cabinet.
✓ Maximizes drawer space and allows for full access to the drawer contents.
✓ Precision Engineering: Delivers reliable performance and durability, even with heavy loads
•Universal Fit
Suited for Frameless & Blocked-Out Face Frames
Perfectly designed for frameless and blocked-out face frame cabinets, these slides provide versatility and adaptability for a wide range of cabinet styles.
✓ Cabinet Fit: Suited for frameless and blocked-out face frame cabinets.
✓ Material Thickness: Accommodates up to 16mm (5/8″) and 19mm (3/4″) drawer material thicknesses, providing a secure and stable mounting solution for plywood or particleboard.
✓ Load Capacity: Loading capacity of (75 lb) 34kg.
Ideal Applications
Soft-Close Undermount Concealed Drawer Slides with T-MOTION technology are suitable for a wide range of residential and commercial applications.
Kitchen Cabinets
Kitchen cabinets and drawers.
Bathroom Vanities
Bathroom Vanities.
Office Furniture
Office furniture and filing cabinets.
Bedroom Dressers
Bedroom dressers and nightstands.
Retail Displays
Retail displays and showcases.
Technical Overview
Key application ranges and specifications at a glance.
16 & 19 mm
Panel Thickness
457-610mm
Length Range
T-MOTION
Synchronization Tech
Soft-Close
Damping Mechanism
Documentation and Downloads
Access the complete product catalog, flyer, and installation instructions.
-
Full Product Catalog
Download Full Technical Specs Catalog (PDF)
-
Product Flyer
Concise product overview and primary performance features.
-
Installation Instructions
Detailed installation, adjustment, and setup guidance.
