• TCH-23104 Series
Clip-on Soft-Close Undermount Slides
Clip-on soft-close undermount slides operate quietly and mount out of sight beneath the drawer, with a discreet profile suited to contemporary cabinetry. Engineered for compatibility with both frameless and face frame cabinets.
✓ CLIP-on Design
✓ 75 lb (34kg) Capacity
✓ Whisper-Quiet Soft-Close
✓ Fits 16mm & 19mm Thickness
Engineered for Perfection
Combining reliability, whisper-quiet operation, and discreet design to optimize drawer organization and maintain an uncluttered and contemporary appearance.
• Advanced Motion
Smooth & Whisper-Quiet Closure
The integrated soft-close mechanism guarantees seamless and noise-free drawer operation, delivering a premium user experience characterized by consistent performance and effortless movement.
✓ Soft-Close Mechanism: Equipped with a gentle and controlled closure mechanism, effectively preventing slamming.
✓ Significantly reduces noise levels while enhancing user convenience and safety.
✓ Delivers consistent performance whether opening or closing.
• Clean Aesthetics

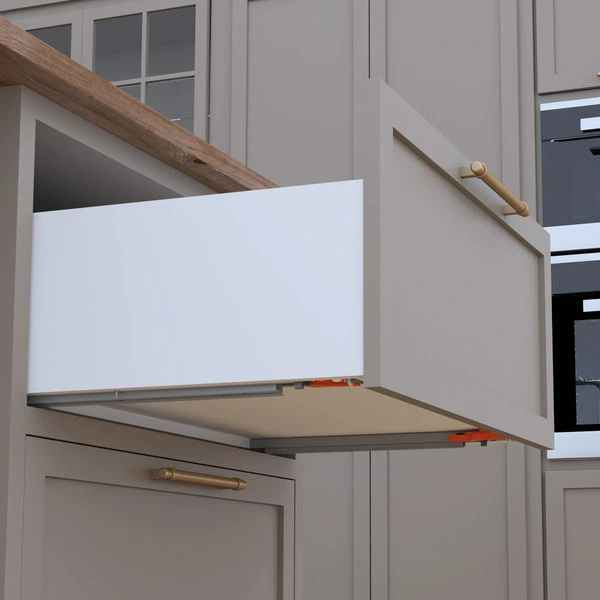

Undermount Concealed Design
Crafted to remain hidden beneath the drawer, these slides contribute to a clean, minimalist aesthetic without visible hardware that might disrupt the cabinet’s overall look.
✓ Optimizes drawer space utilization and allows for unobstructed access to drawer contents.
✓ Provides an elegant, seamless solution for both residential and commercial spaces.
• Universal Fit
Extensive Material & Cabinet Compatibility
Engineered for compatibility with both frameless and face frame cabinets, allowing for rear mounting bracket installation, and offering robust support.
✓ Cabinet Fit: Specifically designed for frameless and face frame cabinets (allowing for rear mounting bracket installation).
✓ Material Thickness: Designed to accommodate drawer material thicknesses up to (5/8″) 16mm and (3/4″) 19mm.
✓ Caters to various materials such as plywood, particleboard, or similar alternatives, ensuring a secure and stable mounting solution.
✓ Load Capacity: Robust loading capacity of (75 lb) 34kg supports a diverse array of items.
Ideal Applications
Soft-Close Undermount Concealed Drawer Slides with T-MOTION technology are suitable for a wide range of residential and commercial applications.
Kitchen Cabinets
Kitchen cabinets and drawers.
Bathroom Vanities
Bathroom Vanities.
Office Furniture
Office furniture and filing cabinets.
Bedroom Dressers
Bedroom dressers and nightstands.
Retail Displays
Retail displays and showcases.
Technical Overview
Key application ranges and specifications at a glance.
16 & 19 mm
Panel Thickness
229-610mm
Length Range
Smooth & Silent
Operation Type
Soft-Close
Damping Mechanism
Documentation and Downloads
Access the complete product catalog, flyer, and installation instructions.
-
Full Product Catalog
Download Full Technical Specs Catalog (PDF)
-
Product Flyer
Concise product overview and primary performance features.
-
Installation Instructions
Detailed installation, adjustment, and setup guidance.
