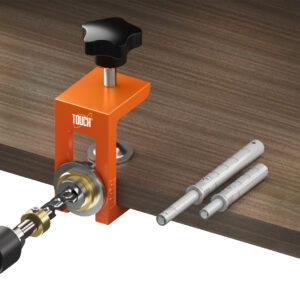

Push Latch Drilling Jig TOU-71001 M10

•TOU-71001 M10

Push Latch Drilling Jig

The TOUCH Push Latch Drilling Jig is an essential, high-precision tool designed for flawless handle-less cabinet installations. Built with heavy-duty aluminum and steel, this jig ensures perfectly straight and precise hole drilling across a wide range of board thicknesses.

✓ Precise Hole Drilling

✓ Aluminum & Steel Build

✓ 16-48mm Board Fit

✓ 10mm Bit Included

10mm drilling jig for push-to-open cabinet latch installation, ideal for accurate, tool-free cabinet assembly without industrial machinery.

Engineered for Ultimate Precision

A specialized, highly accurate woodworking tool designed to make push-to-open latch installations fast and flawless.

• Accuracy & Alignment
Straight & Precise Drilling

Achieving the perfect push latch installation requires exact alignment. This jig features a high-quality bushing drilling guide that ensures completely straight and precise hole drilling every time.

✓ Bushing Guide: Ensures the drill bit stays perfectly aligned, completely preventing slanted or off-center holes.

✓ Reference Markings: Printed markings directly on the jig help users locate the exact drilling positions effortlessly.



10mm drilling jig for push-to-open cabinet latch installation, ideal for accurate, tool-free cabinet assembly without industrial machinery.

•Durability & Setup
Heavy-Duty Construction

Designed for professional woodworkers and installers, this jig accommodates a vast array of cabinet materials and thicknesses to handle any project requirement.

✓ Wide Compatibility: Fully compatible with board thicknesses ranging from 16mm up to 48 mm.

✓ Rugged Material: Crafted with an industrial-grade Aluminum and Steel construction to withstand tough workshop environments.

✓ All-Inclusive Kit: Comes complete with a 10 mm drill bit and a wrench key, so you are ready to work immediately.



Technical Overview

Key specifications and performance standards of the 135° Bi-Fold hinge at a glance.

10 mm

Drill Bit Size

16-48 mm

Board Thickness

Alu & Steel

Construction

M10

Compatible Latch

Documentation and Downloads

Access the complete product catalog, flyer, and installation instructions.

  • Product Flyer

    Concise product overview and primary performance features.

  • Installation Instructions

    Detailed installation, adjustment, and setup guidance.
