• TTCH-11400 045 II Series
Soft-Close +45°II Half Overlay Angled Application Hinge
The Soft-Close +45°II Half Overlay Angled Application Hinge is a premium cabinet hardware solution specifically designed for complex angled cabinet setups. Featuring an integrated hydraulic damper for a smooth, silent close, this hinge provides maximum stability and gap control for modern, angled cabinetry requiring a half overlay configuration.
✓ 105° Opening Angle
✓ Up to 21mm Door Fit
✓ +45° I Half Overlay Setup
✓ Integrated Damper
Engineered for Angled Perfection
A robust, highly adjustable solution combining specialized angled functionality with the luxury of hydraulic soft-close technology.
• Smooth Operation
Hydraulic Damper & Gap Stability
This high-performance hinge features a built-in hydraulic system that ensures the cabinet door closes gently and quietly. Combined with precise engineering, it provides unmatched control over door alignment.
✓ Soft-Close Damper: Built-in hydraulic damper effectively eliminates slamming, creating a peaceful environment while protecting the cabinet structure.
✓ Controlled Adjustment: Designed with gap stability to allow perfect door alignment and maintain a clean, professional look over time.
• Control & Motion
105° Open Angle & Angled Setup
Offers a wide and convenient opening range, perfect for standard and specialized cabinet access. Engineered specifically for +45° I half overlay angled applications to solve complex installation challenges effortlessly.
✓ 105° Open Angle: Provides excellent clearance and accessibility for kitchens, offices, and custom angled layouts.
✓ Angled Precision: Specifically designed for +45° I half overlay configurations, providing reliable performance in non-standard corner cabinetry.
• Specs & Finishes
Universal Integration & Premium Finishes
Engineered to adapt, this hinge is specifically optimized for door thicknesses up to 21mm, accommodating a variety of cabinet materials and styles effortlessly.
✓ Standard Hardware: Features a standard 35mm Hinge Cup Diameter and an 11.5mm Hinge Cup Height with a flexible 3mm to 7mm boring distance range.
✓ Easy Integration: Fully compatible with existing mounting plates, making it an excellent choice for both new installations and hardware retrofitting projects.

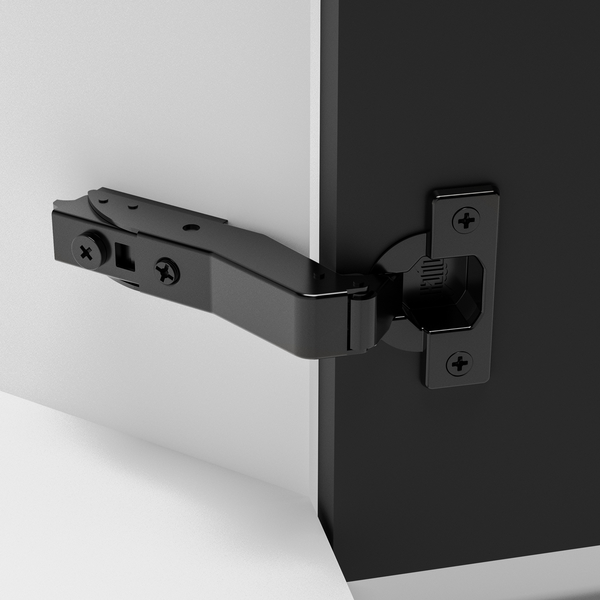

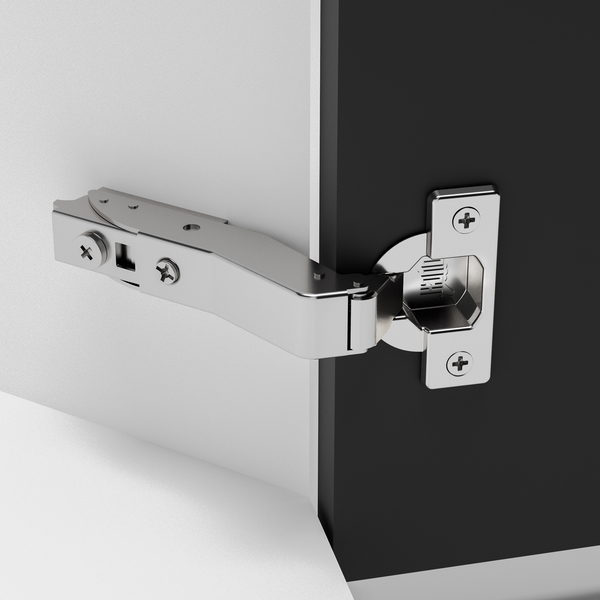

✓ Premium Aesthetics: Choose from high-end durable finishes: Nickel-plated or GM plated.
Technical Overview
Key specifications and performance standards of the 135° Bi-Fold hinge at a glance.
105°
Open Angle
Up to 21 mm
Door Thickness
GM & Nickel
Plated Finishes
+45° I
Overlay Setup
Documentation and Downloads
Access the complete product catalog, flyer, and installation instructions.
-
Full Product Catalog
Complete Hinge System range and technical specifications.
-
RESTRICTOR
Concise product overview and primary performance features.
-
Installation Instructions
Detailed installation, adjustment, and setup guidance.
