Soft-Close Full-Cranked Blind Corner Hinge TCH-11400 090 I

• TCH-11400 090 I

Soft-Close Full-Cranked Blind Corner Hinge

The Soft-Close Full-Cranked Blind Corner Hinge is a high-performance cabinet hardware solution designed for precision and durability. Featuring an integrated hydraulic damper for a smooth, silent close, this hinge is engineered to provide maximum stability and ease of adjustment. Its versatile design makes it suitable for a wide range of door thicknesses, ensuring a premium feel and long-lasting operation for modern cabinetry.

✓ 105° Opening Angle

✓ 14-21mm Door Fit

✓ Integrated Damper

✓ Full-Cranked Blind Corner

Engineered for Corner Perfection

A robust, highly adjustable solution combining safety features with the luxury of hydraulic soft-close technology.

• Smooth Operation
Integrated Soft-Close Hydraulic Damper

This high-performance hinge features a built-in hydraulic system that ensures the cabinet door closes gently and quietly. This advanced damper technology effectively eliminates slamming, creating a peaceful environment while protecting the cabinet structure from wear and tear over time.

✓ Silent Closure: Eliminates loud noises in kitchens, offices, and bathrooms, providing a quiet, high-end user experience.

✓ Premium Durability: Protects both the door and the cabinet frame from impact damage.



• Control & Adjustment
105° Angle & Precision Stability

Offers a wide and convenient opening range, perfect for standard cabinet access. Designed for absolute control, it includes a specialized restrictor integrated directly into the hinge link, providing extra control over the door’s range of motion to prevent contact with adjacent walls or cabinets.

✓ Opening Angle Restrictor: Prevents the door from swinging too far and damaging surrounding structures.

✓ Precision Adjustment: Designed for controlled adjustment, allowing you to align doors perfectly while maintaining consistent gap stability for a clean, professional look.





• Specs & Finishes
Universal Integration & Premium Finishes

Engineered to adapt, this hinge is specifically optimized for versatile door thicknesses ranging from 14mm to 21mm, accommodating a variety of cabinet materials and styles effortlessly.

✓ Standard Hardware: Features a standard 35mm Hinge Cup Diameter and an 11.5mm Hinge Cup Height with flexible 3mm to 7mm setup.

✓ Easy Integration: Fully compatible with existing mounting plates, making it an excellent choice for both new installations and hardware retrofitting projects.

✓ Premium Aesthetics: Choose from high-end durable finishes: GM plated or Nickel plated.

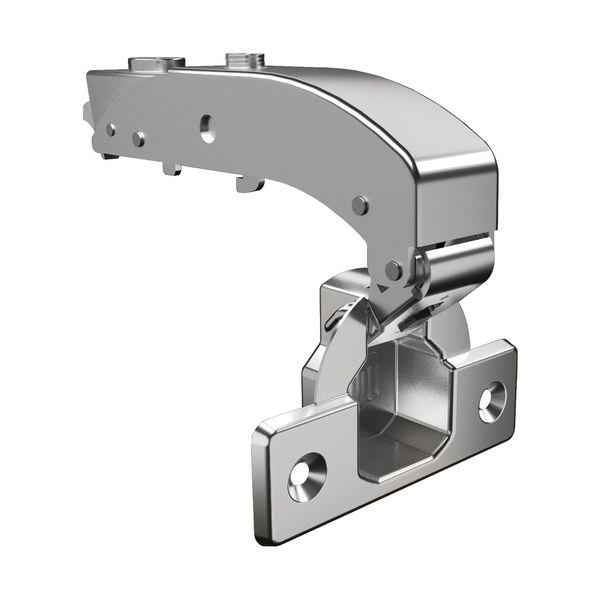

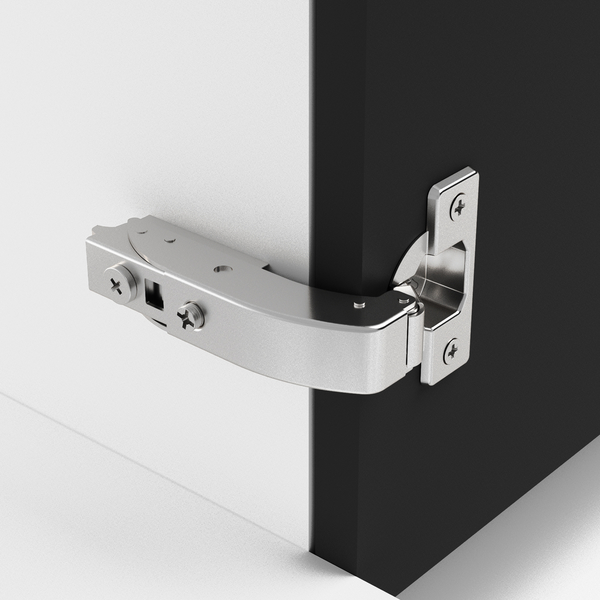

Classic Nickel

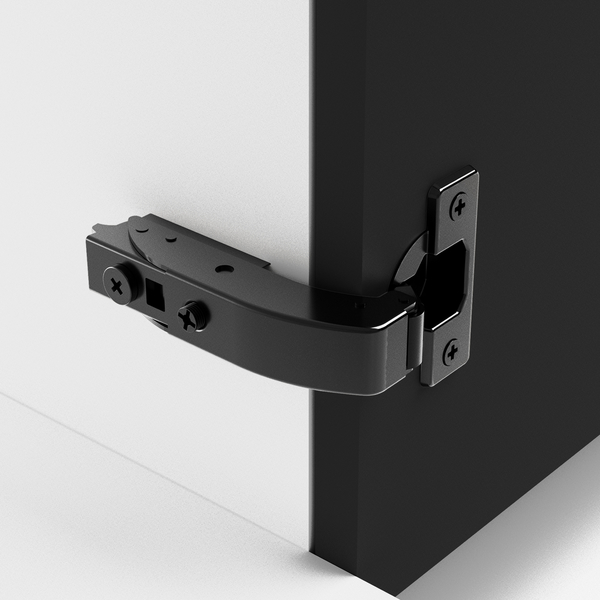

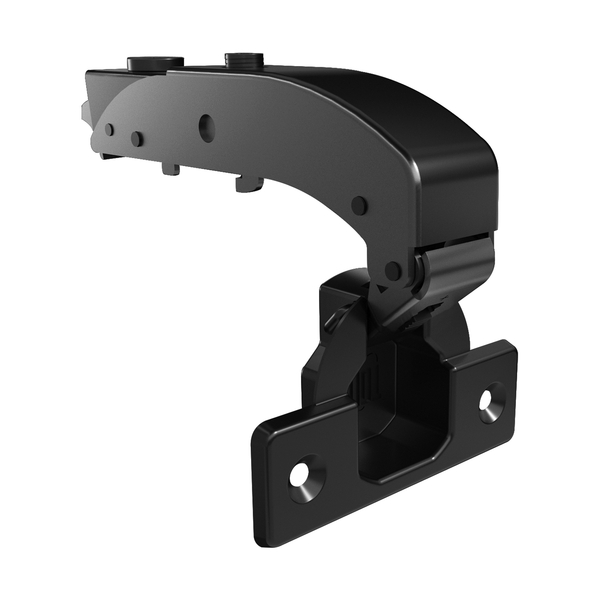

Modern GM (Gun Metal)

Technical Overview

Key specifications and performance standards of the 135° Bi-Fold hinge at a glance.

105°

Open Angle

14-21 mm

Door Thickness

GM & Nickel

Plated Finishes

Full-Crank

Blind Corner Setup

Documentation and Downloads

Access the complete product catalog, flyer, and installation instructions.

  • Product Flyer

    Concise product overview and primary performance features.

  • Installation Instructions

    Detailed installation, adjustment, and setup guidance.
