• TCH-23301 Series

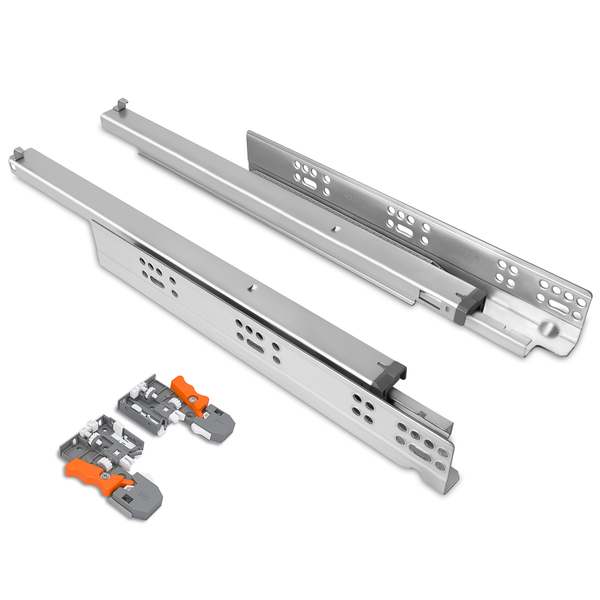

T-MOTION Push-Open Undermount
Concealed drawer runners with push-open functionality. Enables effortless opening of the drawer via the push latch mechanism with a gentle touch on the drawer front. Streamlined concealed design allows for effortless installation. Durable runners ensure consistently smooth and controlled drawer glide.
✓ Push-Open Functionality
✓ Fits 16mm & 19mm Thickness
✓ Synchronized Motion
✓ 75lb (34kg) Capacity
Engineered for Perfection
Crafted with precision engineering and advanced features, designed to be concealed beneath the drawer for a seamless and elegant solution.
• Design & Installation
Streamlined Concealed Design
Streamlined concealed design allows for effortless installation. Durable runners ensure consistently smooth and controlled drawer glide.
✓ Cabinet Suitability: Suited for frameless and blocked-out face frame cabinets.
✓ Available Lengths: Offered in lengths from 457mm (18″) to 610mm (24″).
• Performance & Adjustability
Effortless Push-Open Functionality
Enables effortless opening of the drawer via the push latch mechanism with a gentle touch on the drawer front.
✓ Synchronized Motion: Features a synchronized motion system.
✓ Dimensional Adjustment: Includes a six-way dimensional adjustment clip device.
✓ Depth Adjustment: Features elongated holes for depth adjustment.
• Specifications
Versatile Material Compatibility
Engineered for maximum versatility, these slides accommodate a wide range of material thicknesses, providing secure and stable mounting solutions.
✓ 16mm Slide Compatibility: Compatible with material thicknesses ranging from 13mm (1/2″) to 16mm (5/8″).
✓ 19mm Slide Compatibility: Compatible with material thicknesses ranging from 16mm (5/8″) to 19mm (3/4″).
✓ Load Capacity: 34kg (75lb) Load capacity.
Ideal Applications
T-MOTION Push-Open Undermount Slides are suitable for a wide range of handle-less residential and commercial applications.
Kitchen Cabinets
Kitchen cabinets and drawers.
Bathroom Vanities
Bathroom Vanities.
Office Furniture
Office furniture and filing cabinets.
Bedroom Dressers
Bedroom dressers and nightstands.
Retail Displays
Retail displays and showcases.
Technical Overview
Key application ranges and specifications at a glance.
75 lb / 34 kg
Load Capacity
16 & 19 mm
Panel Thickness
6-Way
Adjustment Clip
Push-Open
Opening Mechanism
Documentation and Downloads
Access the complete product catalog, flyer, and installation instructions.
-
Full Product Catalog
Download Full Technical Specs Catalog (PDF)
-
Product Flyer
Concise product overview and primary performance features.
-
Installation Instructions
Detailed installation, adjustment, and setup guidance.
